Case History

Fumes extraction box

Sector: Industrial

Application: Suction

GB Type: GB Plus

Application features:

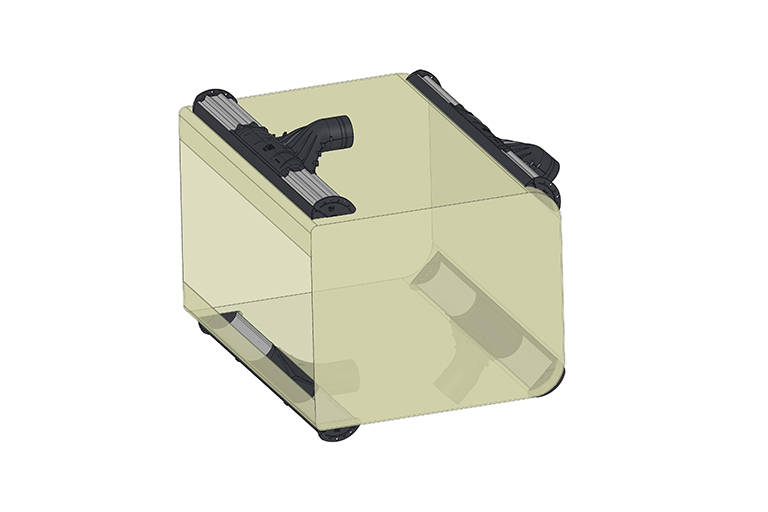

120x80x80cm box with one side open for access.

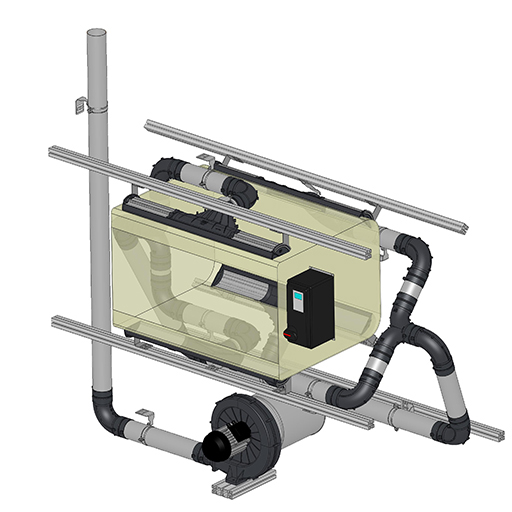

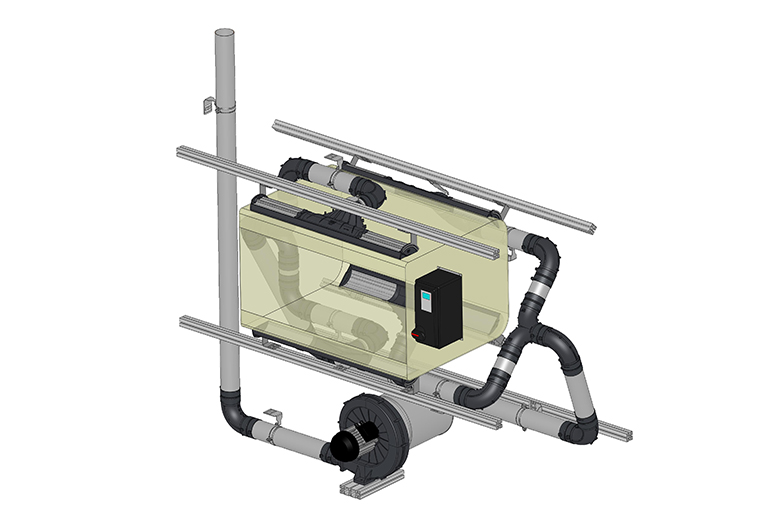

Equipped with 4 integral hoods Ltot = 1100mm mounted on the internal vertices and connected to a single Green Blow Plus blower equipped with an axial HEPA H14 filter.

Targets:

Remove the fumes and prevent it from escaping from the open access side

Energy Consumption:
2,2kW installed. Real consumption 1,5 Kw about

Notes:
This solution could be adopted everywhere there is the need to contain a volatile substance for any application and, at the same time, do not allow it to escape from the open side (left open for the operator)
